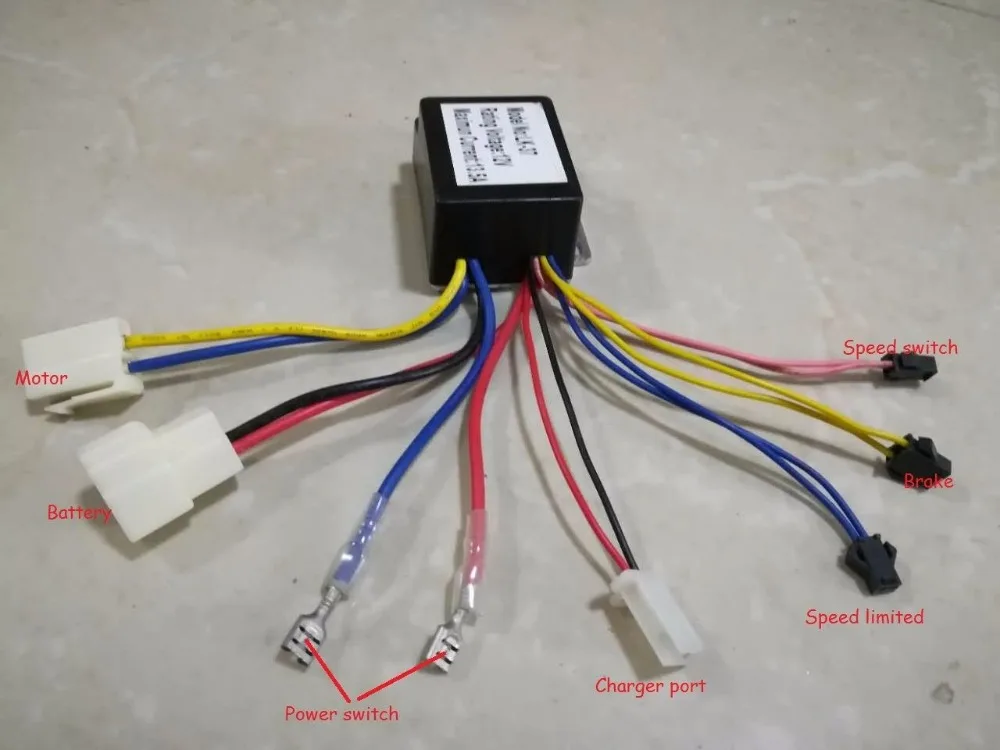

DC12V150Wmotor brush controller speed control box For Children E-Bike scooter Note: This is motor brushed controller 12V 150W, it is used for brushed motor(with 2 power wires),it is not suit for brushless motor(with hall and 3 power wires). Package include:1pcs 12V 150W motor brushed controller Features : 100% Brand New Rated voltage: DC 12 v Current limit : 13.5A Rated power: 150 w Matching motor: dc brushed motor Under Voltage Protection: 10V Wires Interface Definition Battery :Thick Black (Power Negative) /Thick Red (Power Positive) Motor :Thickyellow (Motor Negative) /Thick Blue (Motor Positive) Charge Port : Thin red (charge input power Positive) /thin black (Power negative) Power Switch :Thick Red/Thick Blue Brake :thin yellow /thin yellow Speed Switch :Thin pink /Thin pink Speed limited: Thin blue /thin blue(two wire connected together, the motor speed is low than before)
